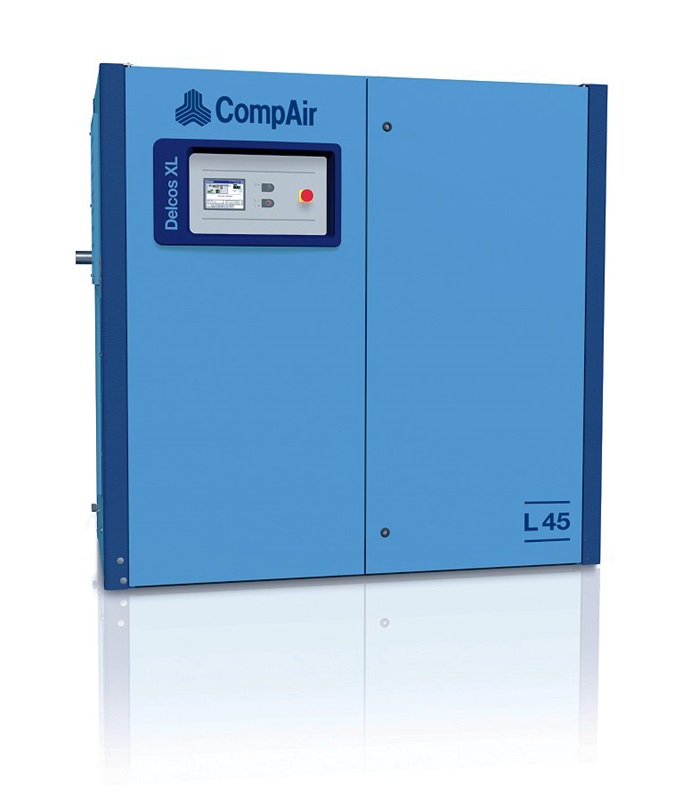

Lubricated Rotary Screw Compressor 30 – 45 kW

CompAir L30 – L45, E, RS

The new versatile screw compressor range from 30 to 45 kW can be configured to meet the customers’ efficiency requirements. The E-models feature a larger airend delivering highest efficiency levels.

Well known in the industry for quality and reliability, CompAir continuously develops the L-Series achieving cutting edge performance and efficiency.

SKU: 1003 Category:

Benefits

An investment that pays off

The regulated speed models save energy by matching the output to the plant air demand. All fixed speed models are available with integrated dryer option.

The E-Models of the L-Series screw compressors feature an extra large airend with optimised rotor tip speed achieving up to 6% energy savings.

The largest cost component of a compressor is the energy to run it. The reduction of energy costs significantly impacts on the total costs of ownership.

The additional investment costs for this range of super efficient compressors will pay back in many cases in less than 12 months. The extra large airend also has a longer life expectancy.

schema for L30 machine
diagram of benefits L30 Rotary screw

Regulated speed compressors

The regulated speed models can efficiently and reliably handle the varying air demand found in most plant air systems. The annual cost of ownership can be significantly reduced using regulated speed technology.

CompAir RS features are your benefits.

The L-RS Series products are designed to obtain the greatest efficiency across the entire operating range.

Wide regulation range – No cycles means substantial energy savings.

Perfect motor – drive – airend design – High efficiency across broad flow range.

Design

Exceptional reliability and performance

  • Large surface after cooler
    Optimum cooling to ensure low operating and discharge temperatures.
  • Next generation separator filter
    Amply dimensioned filtration for constant performance throughout the lifetime delivering an oil carryover of less than 3ppm.
  • High efficiency electric motor
    The compressors are equipped with an energy saving IE4 electric motor as standard.
  • Thermostatically controlled motor driven fan
    Highly efficient and extremely quiet fan allows compressor operation in the work place, plus the use of maximum duct length without further assistance.
  • Highest quality connections
    Solid hoses and pipe connections with viton victaulic couplings increase reliability and are easy to maintain.

Controller

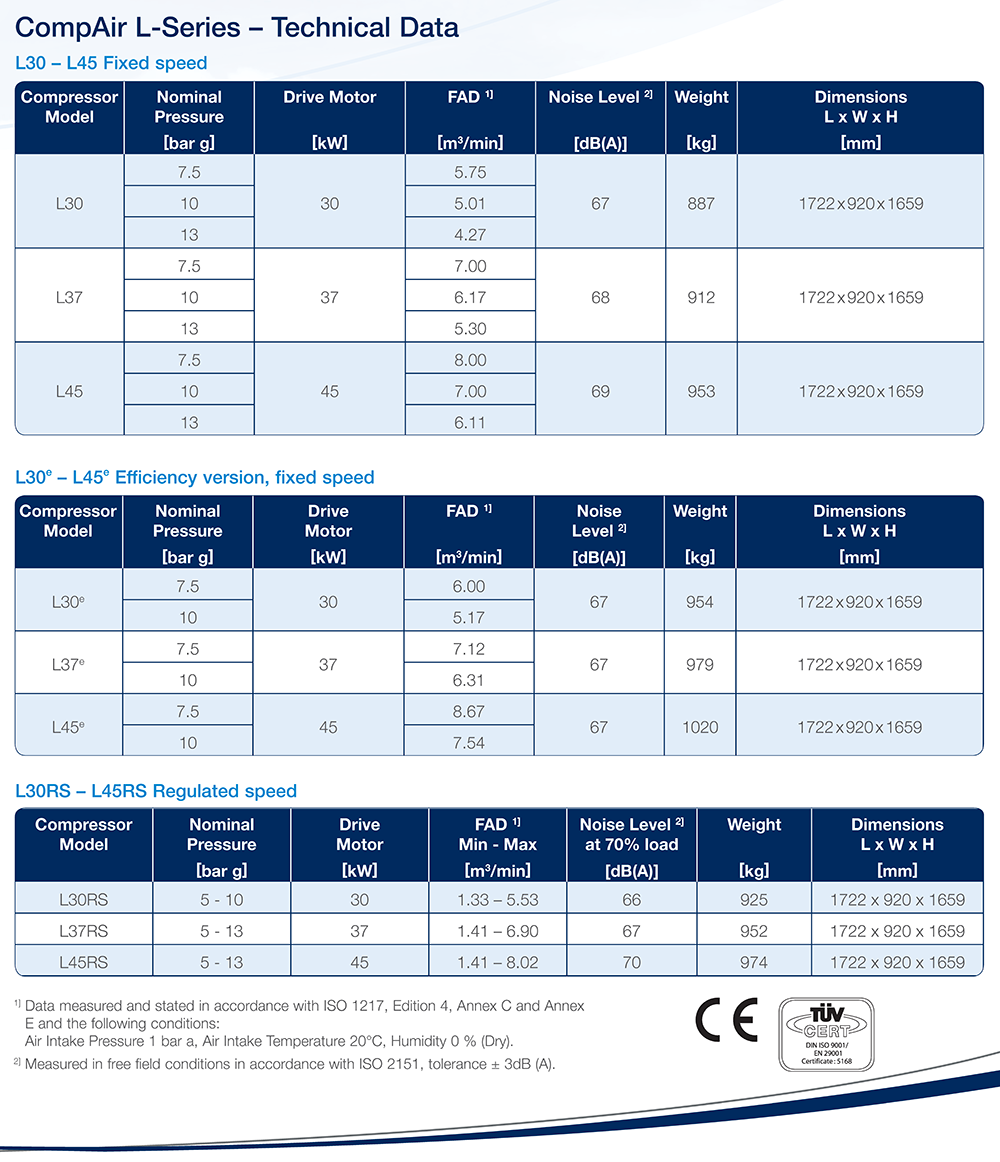

Technical Data
